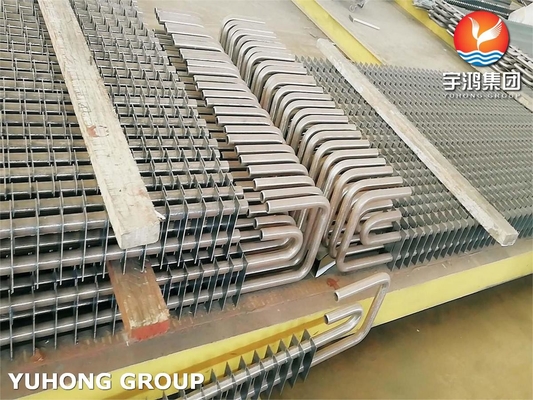

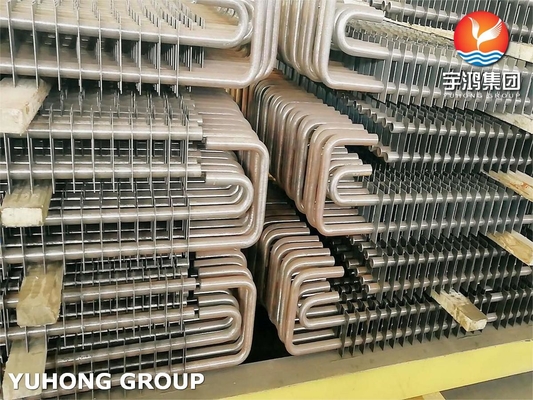

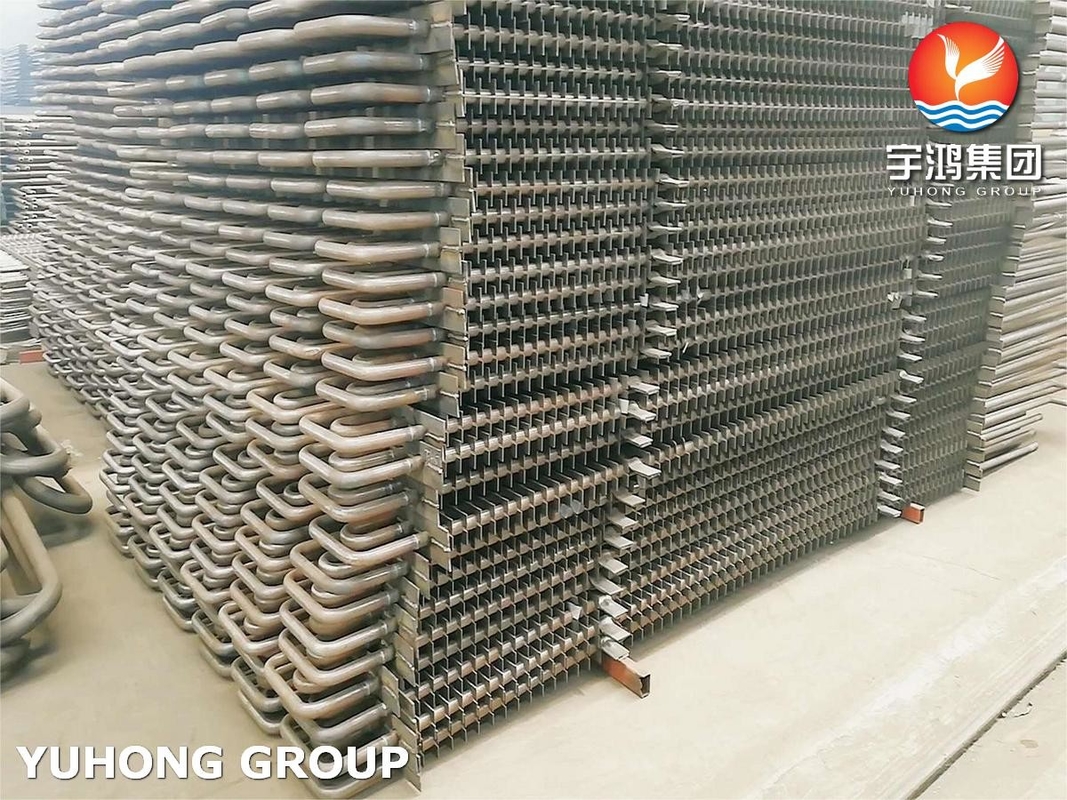

H Shaped Heat Internally Finned Tubes Anti Corrosion ASME SA213 For Copper Pipe

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	H Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material Grade:	TP321	Standard:	ASME SA312 , ASTM A312
Material:	Carbon Steel, Alloy Steel And Stainless Steel	Type Of Base Pipe:	Seamless Steel Pipe
Type Of Fins:	Single H / Double H Type	Application:	Widely Used For Boiler, Heat Exchanger, Condenser, Refrigerator, Economizer And Other Parts Of Heat Industry.
Highlight:	ASME SA213 internally finned tubes , anti corrosion internally finned tubes , ASME heat fins for copper pipe

H Shaped Heat Internally Finned Tubes Anti Corrosion ASME SA213 For Copper Pipe

Product Specifications

Attribute	Value
Material Grade	TP321
Standard	ASME SA312, ASTM A312
Material	Carbon steel, Alloy steel and Stainless steel
Type of base pipe	Seamless steel pipe
Type of fins	Single H / Double H Type
Application	Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry

Product Description

Manufactured from ASME SA213 TP321 stainless steel, these fin tubes offer exceptional high-temperature strength and corrosion resistance. The H fin design significantly enhances heat exchange efficiency while the TP321 stainless steel provides superior resistance to oxidation and corrosive environments.

Chemical Composition

Grade	Cr	Ni	C	Mn	Si	P	S	Ti
TP321	17.0-19.0%	9.0-12.0%	0.08% max	2.0% max	1.0% max	0.045% max	0.030% max	5x(C+N) min, 0.70% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP321	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm (2 inches)	≤ 90 HRB

Key Features

Material: ASME SA213 TP321 stainless steel with excellent high-temperature strength and corrosion resistance
Seamless Construction: Provides uniform strength and eliminates potential weak points associated with welded seams
H Fin Design: Increases surface area for improved heat transfer efficiency
Temperature Resistance: Suitable for high-temperature applications due to its stabilized stainless steel composition

Applications

These fin tubes are specifically designed for use in boiler power stations, where efficient heat transfer and durability are crucial:

Superheaters: Increase the temperature of steam, improving power generation efficiency
Economizers: Recover heat from exhaust gases, enhancing overall thermal efficiency
Heat Exchangers: Optimize energy use in heat recovery systems
Industrial Boilers: Enhance performance and energy efficiency in various industrial applications
