Antioxidation Micro Hot Water Fin Tube ASME SA312 TP304 For Generator Superheater

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	H Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Material Grade:	TP304	Standard:	ASME SA312 , ASTM A312
Material:	Carbon Steel, Alloy Steel And Stainless Steel	Type Of Base Pipe:	Seamless Steel Pipe
Type Of Fins:	Single H / Double H Type	Application:	Widely Used For Boiler, Heat Exchanger, Condenser, Refrigerator, Economizer And Other Parts Of Heat Industry.
Highlight:	antioxidation hot water fin tube , Superheater hot water fin tube , antioxidation micro fin tube

Antioxidation Micro Hot Water Fin Tube ASME SA312 TP304 For Generator Superheater

Product Specifications

Attribute	Value
Material Grade	TP304
Standard	ASME SA312, ASTM A312
Material	Carbon steel, Alloy steel and Stainless steel
Type of base pipe	Seamless steel pipe
Type of fins	Single H / Double H Type
Application	Widely used for boiler, heat exchanger, condenser, refrigerator, economizer and other parts of heat industry

Product Overview

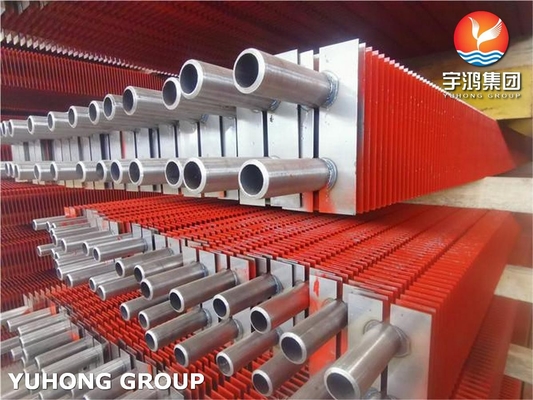

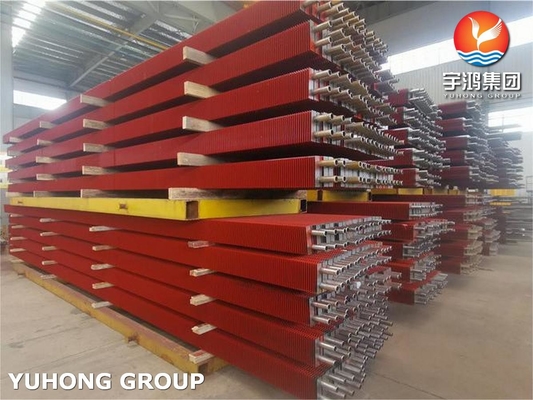

The Seamless Steel ASME SA312 TP304 Square H Fin Tube for Generator Superheater is a high-performance component engineered for enhanced thermal efficiency and durability in power generation applications. With its seamless construction, robust material properties, and innovative fin design, this tube offers reliable performance and cost-effectiveness.

ASME SA312 is the standard specification for seamless, welded, and heavily cold-worked austenitic stainless steel pipes, ensuring high quality and performance.

Chemical Composition

Grade	Cr	Ni	C	Mn	Si	P	S
TP304	18.0-20.0%	8.0-11.0%	0.08% max	2.0% max	1.0% max	0.045% max	0.030% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP304	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm (2 inches)	≤ 90 HRB

Key Features

Material: Made from ASME SA312 TP304 stainless steel, known for its excellent corrosion resistance and high-temperature strength.
Construction: Seamless construction ensures uniform strength and eliminates potential weak points associated with welded seams.

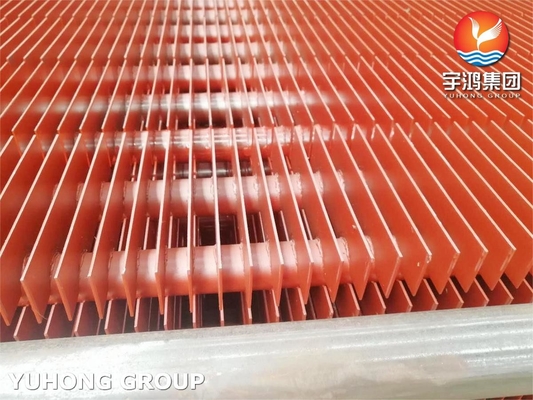

Fin Design: Square H fins are integrated to increase the surface area, improving heat transfer efficiency.
Durability: Resistant to oxidation and scaling at elevated temperatures, providing a long service life.

Applications

These finned tubes are specifically designed for use in generator superheaters, where efficient heat transfer and durability are crucial:

Power Generation: Utilized in superheaters to improve the efficiency of steam generation by increasing the heat exchange surface area.
Heat Recovery Systems: Employed in heat recovery steam generators (HRSG) to optimize thermal efficiency.
Industrial Boilers: Used in industrial boiler systems to enhance performance and energy efficiency.
