| Brand Name: | YUHONG |
| Model Number: | ASTM B111 C71500 |
| MOQ: | Depend the size of finned tubes, 50-100PC |
| Price: | 30-10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |

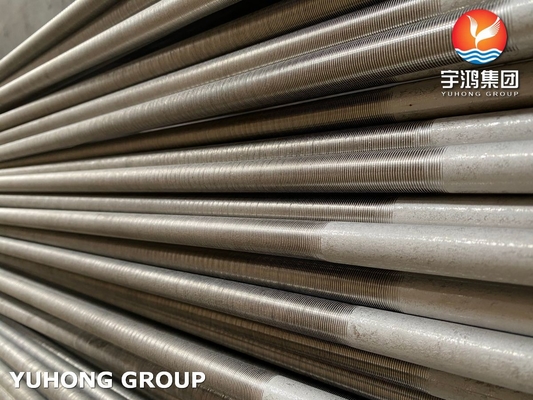

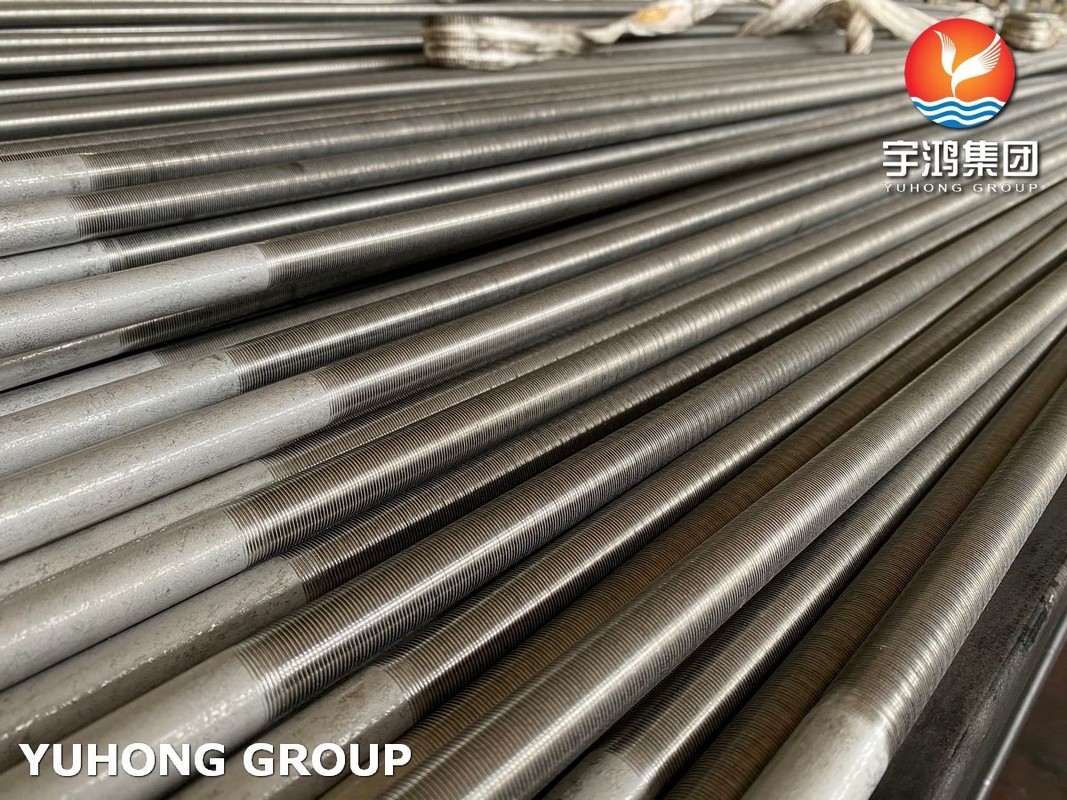

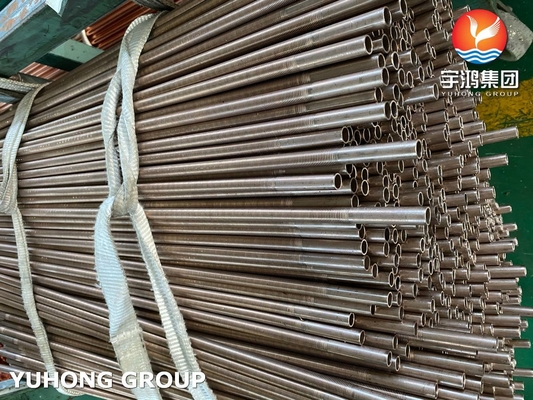

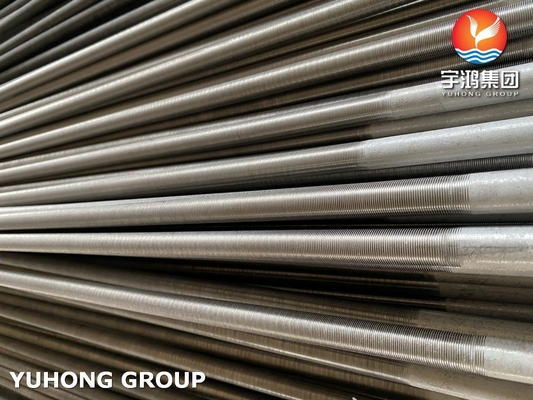

High-performance Copper Nickel 70/30 Low Fin Tubes designed for superior heat transfer efficiency in demanding industrial applications. Manufactured to ASTM B111 standards for seamless tube and ferrule stock.
| Attribute | Value |
|---|---|
| Product | Fin Tubes or Finned Tube |
| Type | Low Fin Tubes / Integral Fin Tubes |
| Standard | ASTM B111 |
| Material | C71500 Tube CuNi 70 / 30 |
| Use | For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators |
| Packing | Ply-wooden Case With Iron Frame |
| Grade | Cu | Ni, incl Co | Pb | Fe | Zn | Mn |
|---|---|---|---|---|---|---|
| C71500 | remainder | 29.0-33.0 | 0.05 | 0.4-1.0 | 1.00 | 1.00 |
| Grade | Standard | Tensile Strength,min | Yield Strength (0.2%Offset,min) |
|---|---|---|---|
| C71500 | O61 | 52ksi | 18ksi |
| C71500 | HR50 | 72ksi | 50ksi |
| Type | Description | Base tube O.D. (mm) | Fin pitch (mm) | Fin height (mm) | Fin thick (mm) |
|---|---|---|---|---|---|
| Embedded | G-type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube | T-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 |
| Bamboo tube | corrugated tube | 16-51 | 8-30 | <2.5 | ~0.3 |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
Low fin tubes are specialized heat exchanger tubes designed to enhance heat transfer by increasing the surface area. They feature small, closely spaced fins on their outer surface, typically with a height of about 0.125 to 0.25 inches.
These integral fin tubes are increasingly used in various fluid heat exchangers including coolers, condensers, and chillers. Their design enhances heat transfer efficiency while maintaining a compact structure, typically constructed from durable materials like copper nickel alloys for corrosion resistance.
