| Brand Name: | YUHONG |
| Model Number: | Seamless Tube |
| MOQ: | 1PC |
| Price: | 1 - 10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons/Month |
| Attribute | Value |
|---|---|
| Material Grade | C12200 |
| Material Standard | ASTM B111, ASME SB111 |
| Type | Straight Tube |
| Application | Heat Exchangers, Condensers, Coolers, Etc. |
| Fin type | Low Fin |
| Fin Material | Copper |

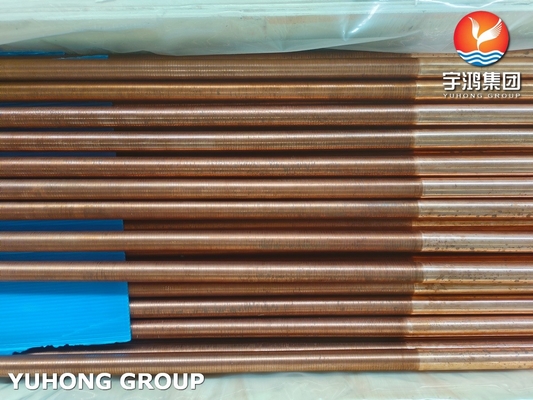

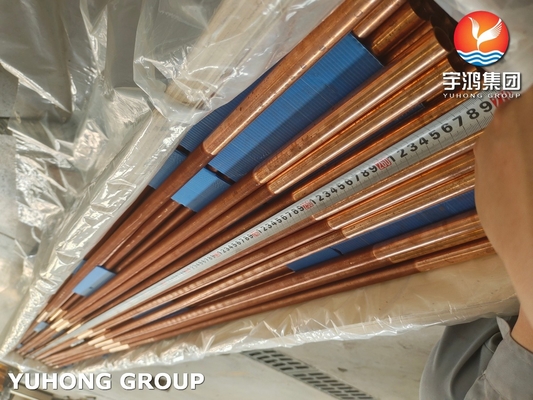

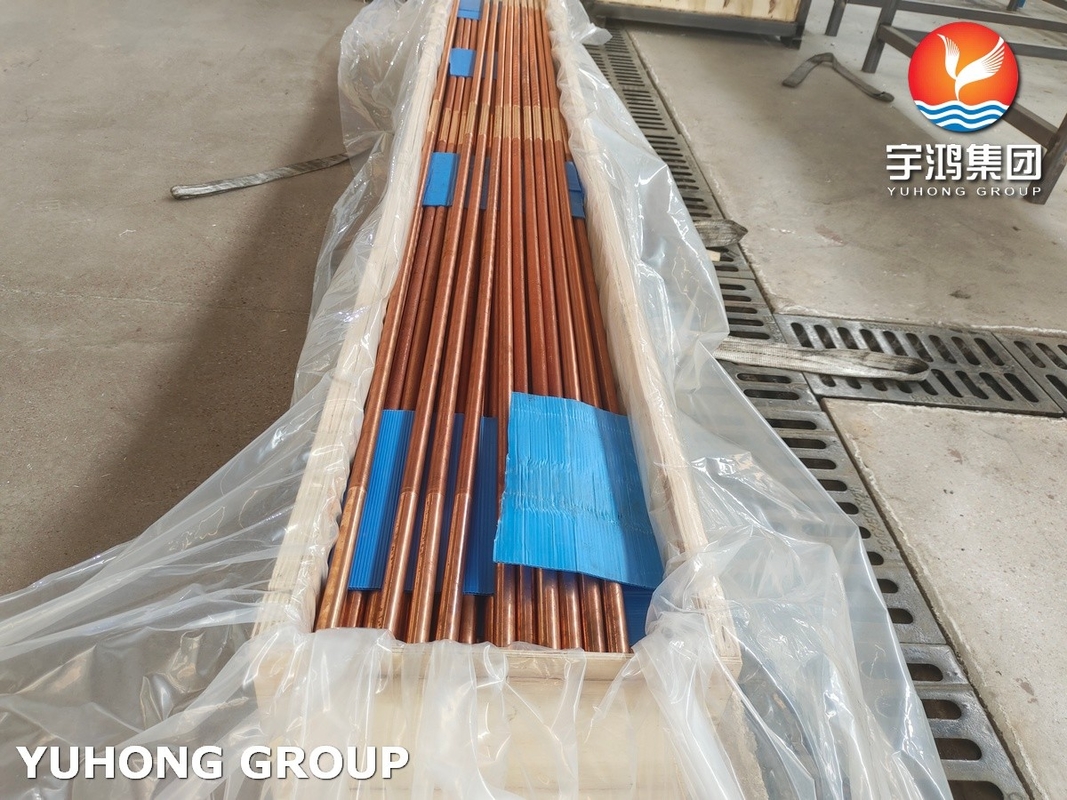

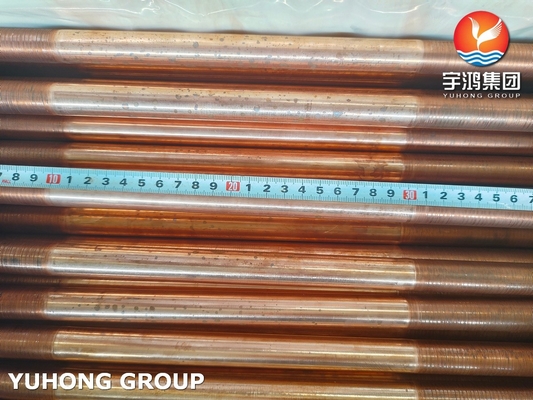

ASTM B111 C12200 Low Fin Tube is a copper alloy tube with low fins designed to increase surface area for enhanced heat transfer. Manufactured from phosphorus-deoxidized copper, this tube offers exceptional thermal and electrical conductivity.
The low fin design maximizes heat transfer efficiency without significantly increasing volume. It provides good resistance to various environments including water and mild chemicals, and can be easily fabricated and joined through brazing or soldering.
| Grade | Cu | P |
|---|---|---|
| C12200 | 99.9% min | 0.015-0.040% |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| C12200 | Varies depending on temper | 205-275 MPa (30-40 ksi) | 30% min in 50 mm | Varies with temper |
