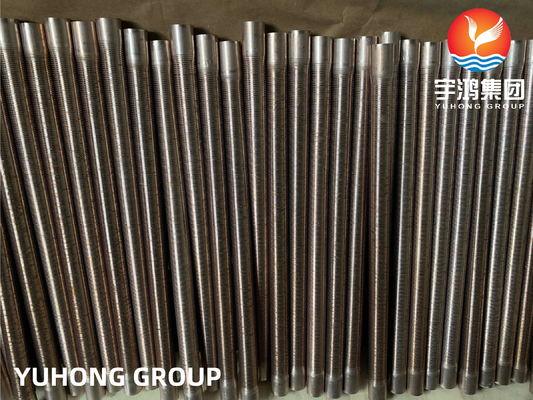

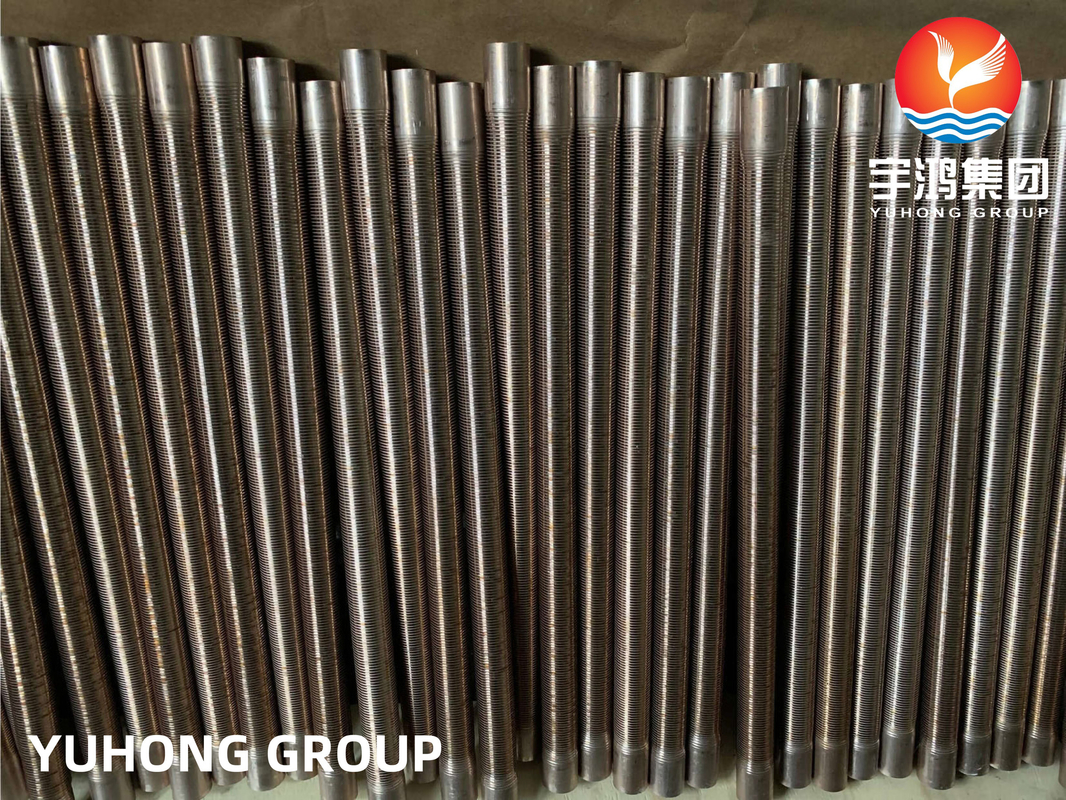

ASME SB111 C70600 Integral Low Fin Tubes Copper Nickel Finned Tubular Heating

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	Low Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Delivery Time:	5 - 90 Days
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Bast Tube Material Grade:	UNS C70600 O61 , Cu-Ni 90/10	Bast Tube Material Standard:	ASTM B111 , ASME SB111
Type:	Straight Tube	Application:	Heat Exchangers, Condensers, Coolers, Etc.
Fin Type:	Low Fin	Fin Material:	Copper
Highlight:	ASME SB111 Integral Low Fin Tubes , C70600 Integral Low Fin Tubes , ASME SB111 finned tubular heating

ASME SB111 C70600 Integral Low Fin Tubes Copper Nickel Finned Tubular Heating

Product Specifications

Attribute	Value
Base Tube Material Grade	UNS C70600 O61, Cu-Ni 90/10
Base Tube Material Standard	ASTM B111, ASME SB111
Type	Straight Tube
Application	Heat Exchangers, Condensers, Coolers, Etc.
Fin Type	Low Fin
Fin Material	Copper

Product Description

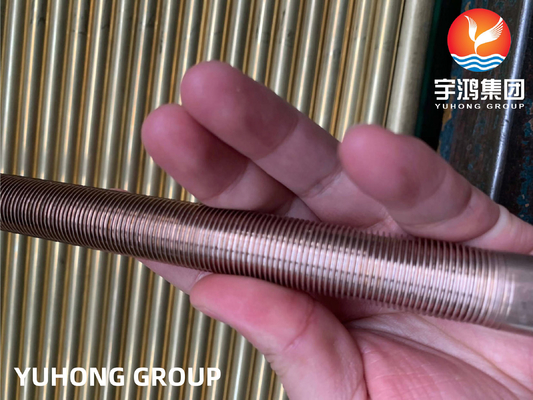

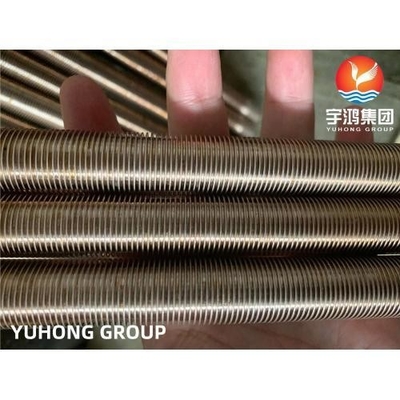

Low fin tubes are heat exchanger tubes featuring short, integral fins on the outer surface. These fins are formed directly from the tube material, increasing surface area for heat transfer while maintaining structural integrity. Ideal for applications requiring enhanced heat transfer without significantly increasing tube diameter.

The ASME SB111 UNS C70600 O61 Copper-Nickel alloy offers excellent corrosion resistance to seawater and good fabricability. The 90/10 copper-nickel composition (90% copper, 10% nickel) provides strength, corrosion resistance, and ductility, making it suitable for marine, automotive, shipping, offshore, and power generation applications.

Low fin tubes provide superior heat transfer performance compared to plain tubes while maintaining the same diameter as the base tube, allowing use in standard shell and tube baffles and tube sheets.

Technical Specifications

Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Cu-Ni 90/10	2.0872	C70600

Grade Types

Type	UNS	EN	GB	ISO	JIS
Copper	C12200	CW024A	TP2	Cu-DHP	C1220
Copper	C12000	CW023A	TP	Cu-DLP	C1201
Admiralty Brass	C44300	CW706R	HSn70-1	CuZn28Sn1As	C4430
Admiralty Brass	C68700	CW702R	HAI77-2	CuZn20AI2Ass	C6870
Copper Nickel 90/10	C70600	CW352H	BFe10-1-1	CuNi10Fe1Mn	C7060
Copper Nickel70/30	C71500	CW354H	BFe30-1-1	CuNi30Mn1Fe	C7150

Chemical Composition

Cu	Mn	Pb	Fe	Zn	Ni
88.6 min	1.0 max	0.05 max	1.8 max	1 max	9-11 max

Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in³ at 68°F	2100°F	38	15	30%

Applications

Process Heaters
Waste Heat Boilers
Petrochemical Industries
Refinery Plant
Waste Heat Recovery Systems
Heating Equipment
Economizers
Heat Exchangers
Oil Coolers
Evaporators
Chillers
