ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type

Product Details:

Place of Origin:	China , Korea
Brand Name:	YUHONG
Certification:	ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Delivery Time:	5 - 90 Days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Contact Now Chat Now

Detailed Product Description

Base Tube Material:	Gr.A-1	Base Tube Standard:	ASME SA210 , ASTM B209
Type:	Wound, L Type, LL Type, KL Type	Application:	Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube	Fin Material:	Aluminum , Copper , Stainless Steel , Carbon Steel
Highlight:	ASTM B209 aluminium finned tubes , Gr.1060 aluminium finned tubes , ASTM low fin tubes for heat exchangers

ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type

Product Specifications

Attribute	Value
Base Tube Material	Gr.A-1
Base Tube Standard	ASME SA210, ASTM B209
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

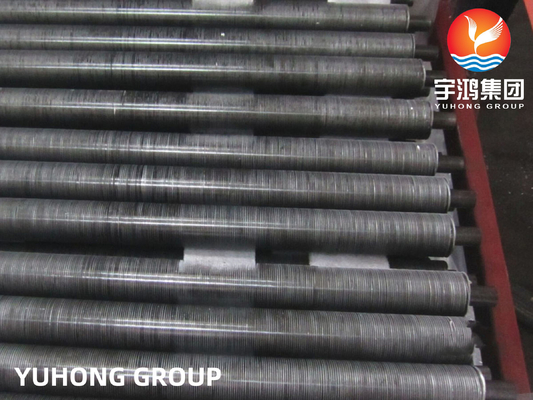

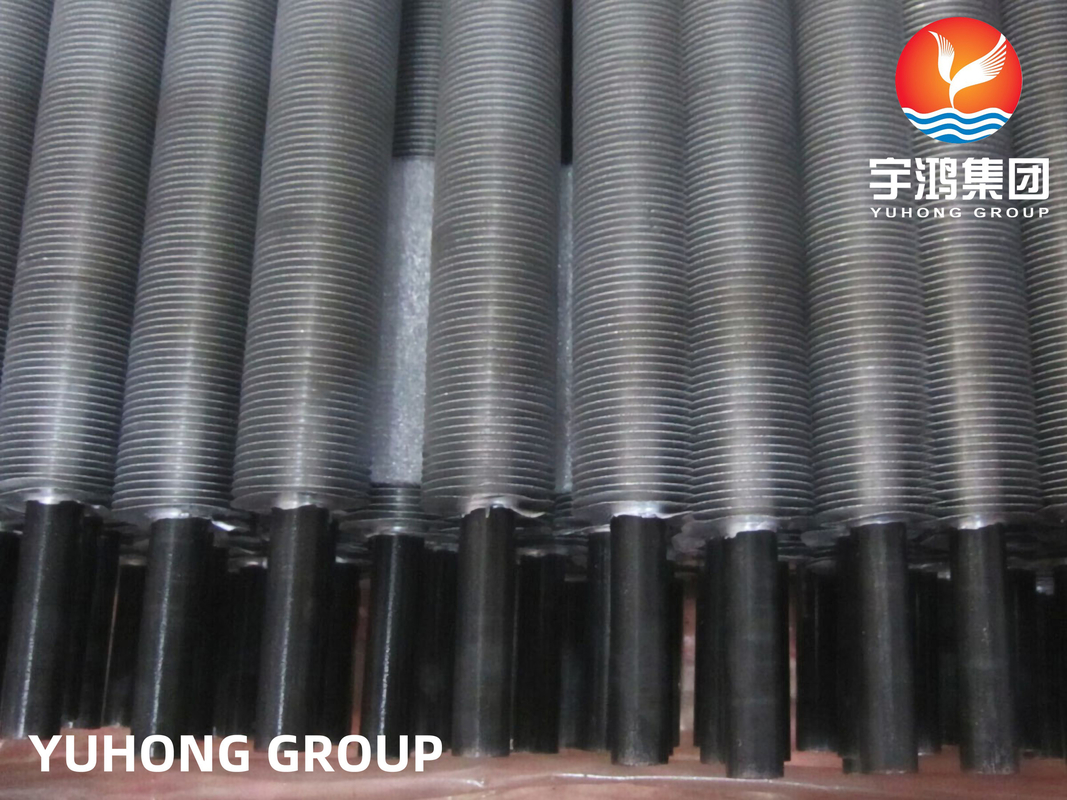

The Wound Fin Tube with ASME SA210 Gr.A-1 base and ASTM B209 Gr.1060 aluminum fins is engineered for optimal performance in heat exchanger applications. Gr.A-1 is a medium-carbon steel grade specifically designed for high temperature and pressure environments, making it ideal for boiler and superheater tubes.

Technical Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition

Grade	C	Mn	P	S	Si
Gr.A-1	0.27-0.33%	0.93% minimum	≤ 0.035%	≤ 0.035%	0.10% minimum

Mechanical Properties

Tensile Strength	415 MPa (60,000 psi) minimum
Yield Strength	255 MPa (37,000 psi) minimum
Elongation	30% minimum in 50 mm
Hardness	≤ 79 HRB (Rockwell Hardness B)

Key Features

Enhanced Heat Transfer: Aluminum fins significantly increase surface area for improved heat transfer rates
Corrosion Resistance: Aluminum fins provide excellent resistance to corrosion in air and water environments
Mechanical Bonding: Wound L type fin design ensures secure mechanical bond between fins and base tube
High Thermal Conductivity: Aluminum fins ensure efficient heat exchanger performance
Durable Construction: Gr.A-1 base tube provides strength and resistance to mechanical stress

Applications

Boilers and Superheaters

Power Plants: Steam boilers and superheaters in power generation
Industrial Boilers: High temperature and pressure industrial applications

Heat Exchangers

Shell and Tube Heat Exchangers: Chemical and petrochemical industries
Air-Cooled Heat Exchangers: Industrial and HVAC cooling systems

Chemical Processing

Chemical Plants: Heat exchangers and condensers
Petrochemical Refineries: High strength and corrosion resistance applications
