| Brand Name: | YUHONG |
| Model Number: | ASTM A213 TP347H |
| MOQ: | Depend the size of finned tubes, 50-100PC |
| Price: | 30-10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Attribute | Value |
|---|---|
| Product | Fin Tubes or Finned Tube |
| Type | High Frequency Welding / Helical Solid Fin Tubes |
| Base Tubes Standard | ASTM A213 |
| Material | TP347H Base pipes and 5052 Aluminum Fins |
| Length | Custom according to requirements |
| Size and details | Custom according to requirements |
| Use | Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators |
| Packing | Ply-wooden Case With Iron Frame |

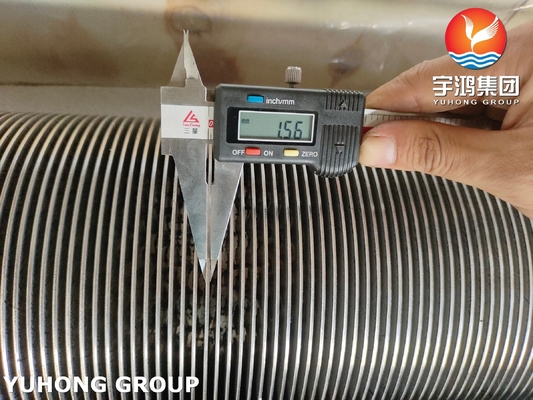

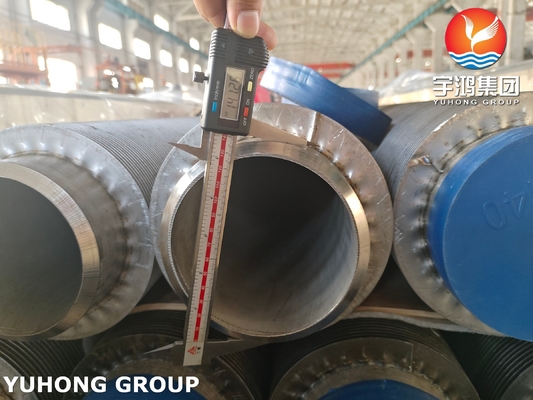

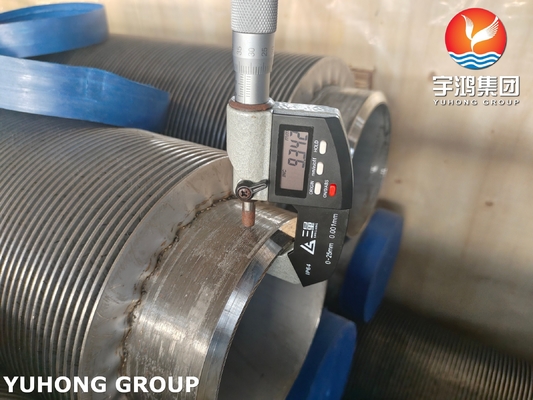

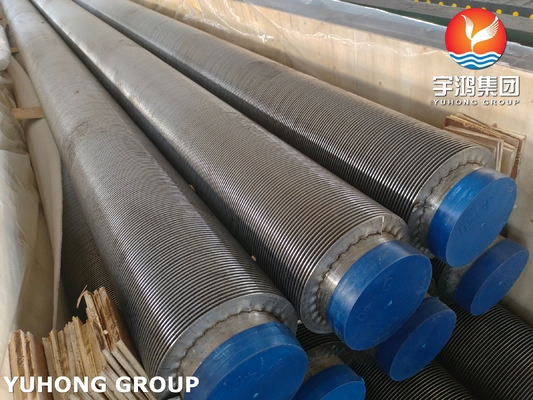

Helical solid fin tubes, also known as high frequency welding fin tubes, are manufactured using a specialized process that utilizes high-frequency electrical currents to fuse metal edges without additional filler materials.
ASTM A213 TP347H S34709 base tubes are seamless ferritic and austenitic steel tubes designed for boiler, superheater, and heat-exchanger applications. Grades containing "H" provide enhanced creep-rupture strength.
| Grade | C | Mn | P | S | Si | Cr | Ni | Nb |
|---|---|---|---|---|---|---|---|---|
| TP347H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | 8×C-1.10 |
| Grade | Tensile Strength (min) | Yield Strength (0.2% Offset, min) | Elongation (min) | Hardness (max) |
|---|---|---|---|---|
| TP347H | 75ksi (515 MPa) | 30ksi (205 MPa) | 35% | 192 HBW / 200HV / 90 HRB |
AL5052 is an aluminum-magnesium alloy with exceptional corrosion resistance against seawater and salt spray, making it ideal for marine applications such as liquefied natural gas tankers. While not heat treatable, it can be hardened through cold working.
Ideal for power stations and high-temperature equipment in the oil industry, including:
| Type | Description | Base tube O.D. (mm) | Fin pitch (mm) | Fin height (mm) | Fin thickness (mm) |
|---|---|---|---|---|---|
| Embedded | G-type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube | T-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 |
| Bamboo tube | Corrugated tube | 16-51 | 8.0~30 | <2.5 | ~0.3 |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type | H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 |
| Studed | Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
As a leading Chinese manufacturer of fin tubes, we have extensive project experience in heat exchanger and boiler systems, marine applications, and oil & gas projects. Our products are exported to over 80 countries worldwide, supported by advanced production equipment and skilled technical staff.
