| Brand Name: | YUHONG |
| Model Number: | ASTM A106 Gr. B |
| MOQ: | Depend the size of finned tubes |
| Price: | 30-10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Attribute | Value |
|---|---|
| Type | Studded Tubes |
| Standard | ASTM A106 |
| Material | Gr. B Base Tubes and CS Fins |

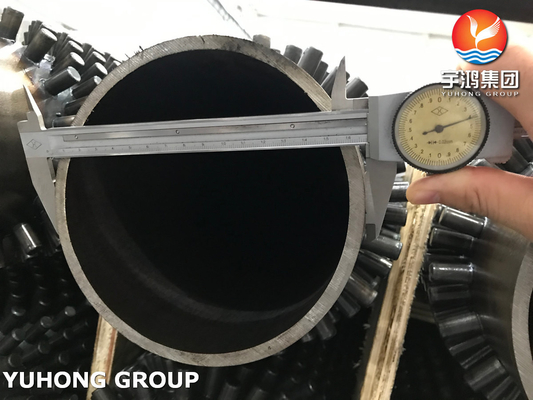

| O.D. | Generally Greater Than 100mm |

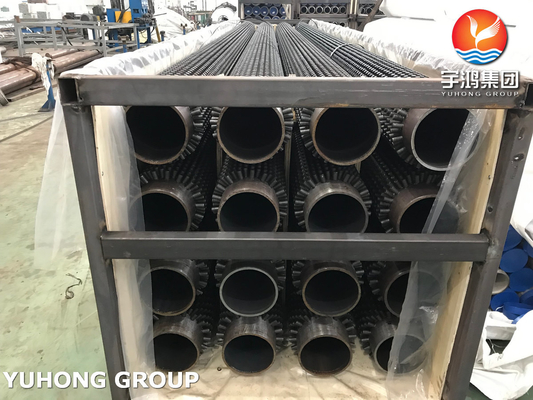

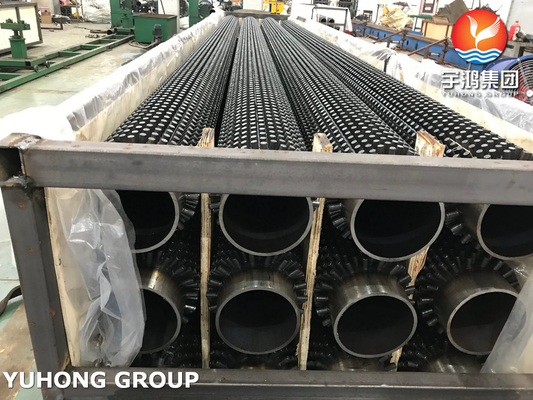

| Packing | Ply-wooden Case With Iron Frame |
| Use | For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc |
ASTM A106 Gr B Studded Tubes are designed for high-temperature service in corrosive environments, offering superior heat transfer efficiency and durability.
ASTM A106 specification covers seamless carbon steel pipe for high-temperature service in NPS 1⁄8 to NPS 48 [DN 6 to DN 1200] inclusive, with nominal wall thickness as given in ASME B36.10M.
| Grade | C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|---|
| Gr.B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Grade | Tensile Strength, min | Yield Strength (0.2% Offset, min) |
|---|---|---|
| Gr. B | 60ksi (415 MPa) | 35ksi (240 MPa) |

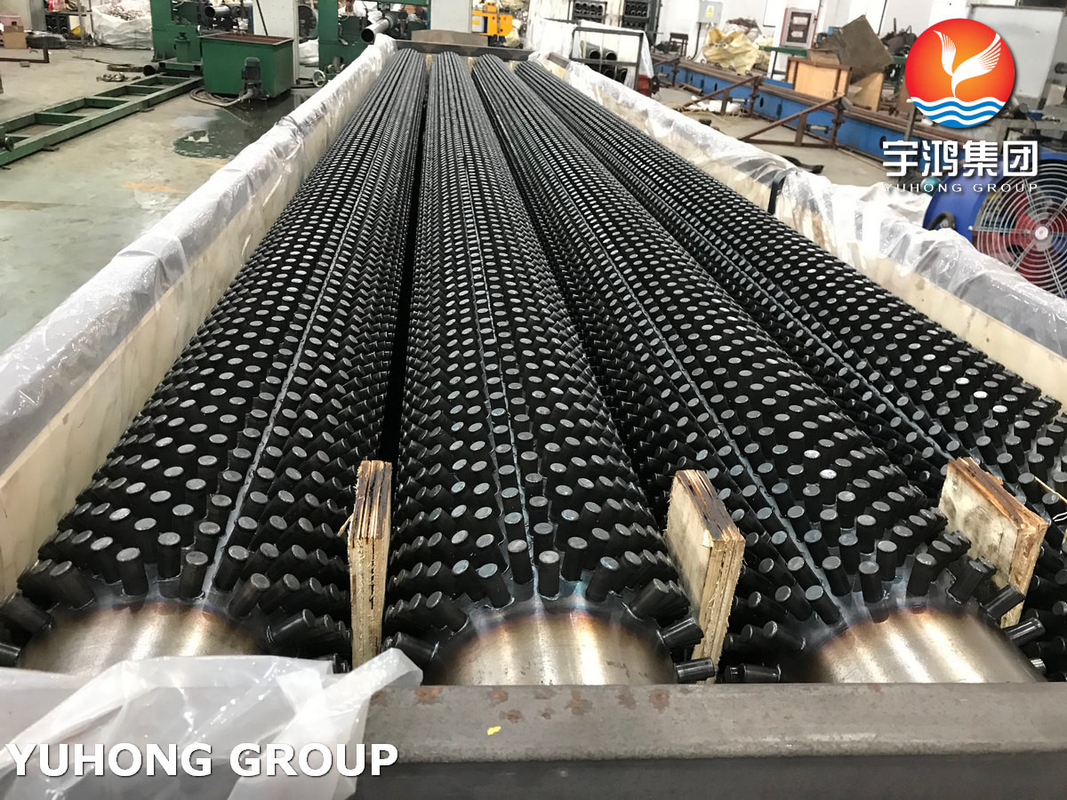

Also known as nail head tubes or nail-like ribbed tubes, studded fin tubes are widely used in petrochemical industries, particularly in the convection chambers of tubular furnaces to enhance heat transfer effects.
| Type | Description | Base tube O.D. (mm) | Fin pitch | Fin height | Fin thick |
|---|---|---|---|---|---|
| Embedded | G-type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube / T-type | fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 |
| Bamboo tube | corrugated tube | 16-51 | 8.0~30 | <2.5 | ~0.3 |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type | fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
